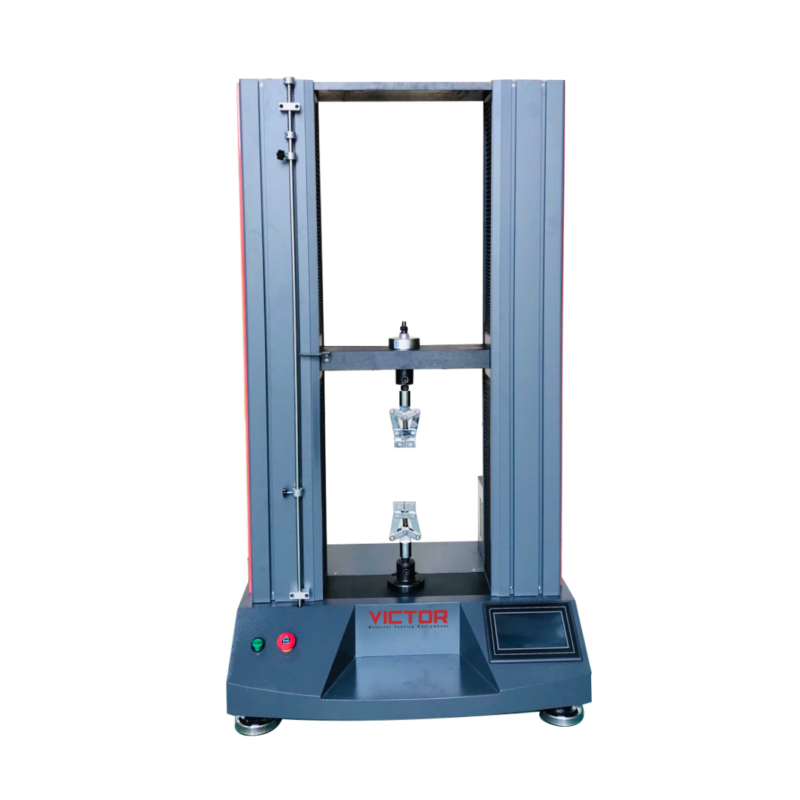

VEW 2308T Benchtop LCD Touch Screen-controlled Universal Testing Machine

Product Application:

Model VEW 2308T Large LCD Digital Display Electromechanical Universal Testing Machine is designed and manufactured according to ASTM, ISO, DIN etc standards. It is suitable for wide range of material for tension, compression, bending and shearing test, etc. It has high stability as well as high precision, equip with LCD display control with easy operation. It is widely used in many fields such as industry factories, mineral enterprise and high schools.

Product Features:

  • High accuracy servo motor to control test speed.
  • Ball screw no backlash to guarantee the low noise and high driving efficiency.
  • High accuracy load cell to measure the test load.
  • High accuracy photoelectric encoder to measure the displacement.
  • Large LCD controller has strong function, it can show test load, displacement, test
    speed, test status, and also has the function of peak load holding, peak displacement
    holding and self return original position.
  • Thousands of test fixture can be used according to different test request;
  • Compact structure with easy operation.
  • Limit switch and setting in the controller to guarantee the safety.
  • Load accuracy meets or exceeds Grade 1 ASTM E4, ISO7500-1. EN10002-2, BS1610,
  • Accurate encoder guarantee the accurate displacement, the encoder is installed
    with the ball screw, and the ball screw to drive it turning directly.
  • Speed can be set by Large LCD controller, and the excellent servo motor can support
    the high speed, and the speed can be extended by special offer.
  • Robust compact structure guarantees the stiffness of the machine, and the servo
    motor drives the no backlash ball screw to do test.


Main Specifications:

• Capacity: 500N/ 1kN/ 2kN/ 3kN/ 5kN/ 10kN/ 20kN
• Load Accuracy: ≤ ± 0.5%
• Load Range: 0.4% – 100%
• Load resolution: 1/300000
• Test Speed: 0.01 – 500mm/min
• Speed Accuracy: ± 0.5%
• Displacement Resolution: 0.01mm
• Crosshead Movement: 800mm
• Strain Measurement Accuracy: ± 0.5% of reading down to 1/50 of full scale with ASTM E 83 class B or ISO 9513 class 0.5 extensometer.
• Extensometer Accuracy: ± 0.5%
• Extensometer Resolution: 0.001mm
• Tensile Space: 600mm
• Compression Space: 600mm
• Dimension (L x W x H): 650 x 450 x 1300mm
• Weight: 120kg
• Power Supply: 220V, 0.5kW, Single Phase
• Safety: 10% Overload Protection, Adjustable Limit Switch
• Load Unit: N, kN, kgf, lb, Ton, etc
