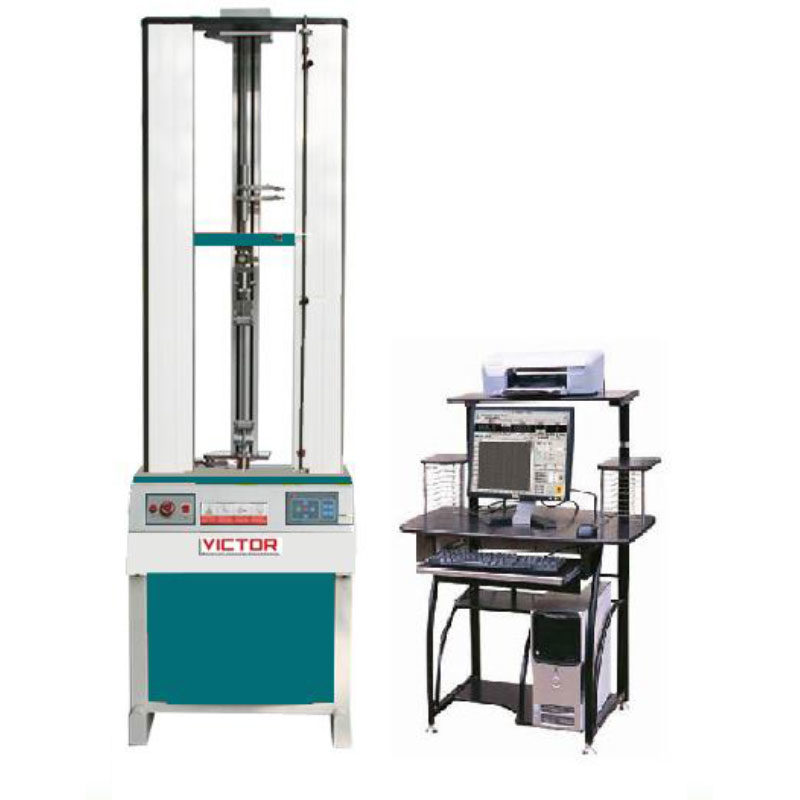

VEW 2307E - Computer Control Servo Universal Testing Machine

Equipment Summary

VEW 2307E Desktop microcomputer-type tensile testing machine is designed by our company which is made of aluminium, it is not only small, used widely, do not take up space, nice appearance, but also easy to move with the hoop, it is very convenient to operate.

  • It is controlled by computer and printing out the testing report; the outward appearance used the closing board dealing with high-level baking varnish, which obviously elegant
  • It especially suitable for controlling quality in production line, this series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2KN

Corresponding Standard

《GB/T16491-1996 Electronic universal testing machine》

Load accuracy meets or exceeds Grade 1:

  • ASTM E4
  • ISO7500-1
  • EN10002-2
  • BS1610
  • DIN51221

Testing Standards for Glove


This testing machine is applied to the flexible material in:

  • Tension
  • Tear
  • Adhesive strength
  • Peel (90 degrees & 180 degrees) and others

Onto rubber, plastic, plastic film and others.

It is equipped with extensometer which is specially used to measure the deformation of a specimen, it is suitable to test the large deformation of material.

Model VEW 2307E
Max load 500N, 1KN, 2KN(Optional)
Accurate grade 1grade /0.5 grade
Effective measuring range 0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Measuring accuracy the value ±1% / the value±0.5%
Tester resolution Max load 1/200000, constant the resolution
Load sensor Basic configuration: sensor(max load): one


Extended configuration: can add more sensors

Effective testing width 300mm (can be widened according to customer’s requirement)
Effective tensile stroke 800mm; 1000mm; 1200mm (can be increased the height according to

customer’s requirement)

Range of testing speed 0.001~500mm/min
Accuracy of displacement measurement Tolerance: ±0.5%/ tolerance: ±0.2%
Deformation of measured system

(according to the requirements)

Min span: 10mm, Max range of deformation :800mm

Extended deformation: Min span: 25mm, 50mm, 100mm;


Range of deformation: 5mm, 10mm, 25mm

Accuracy of measured deformation Tolerance: ±0.5%(according to requirement of customer to choose the larger or small deformation)
safety Electronic-limit protection
Testing platform moving device Fast /slow two speeds to control, jog control
Return back Manual or automatic operation. After the test, the moving iron return to

initial position with the highest speed by manual or automatic operation

Overload protection Overload 10%, automatic protection
fixture A set of tensile fixture
Machine size 65x36x210cm(length*width*height) (including the height of operative table)
Power system Panasonic AC Servo Motor + Driver + high-precision ball screw
Power supply 220V, 50HZ
Power 0.2KW(depending on different demand of force, using different motor)
Machine weight (about) 160 KG
Units Kgf, N, lb, Ton
