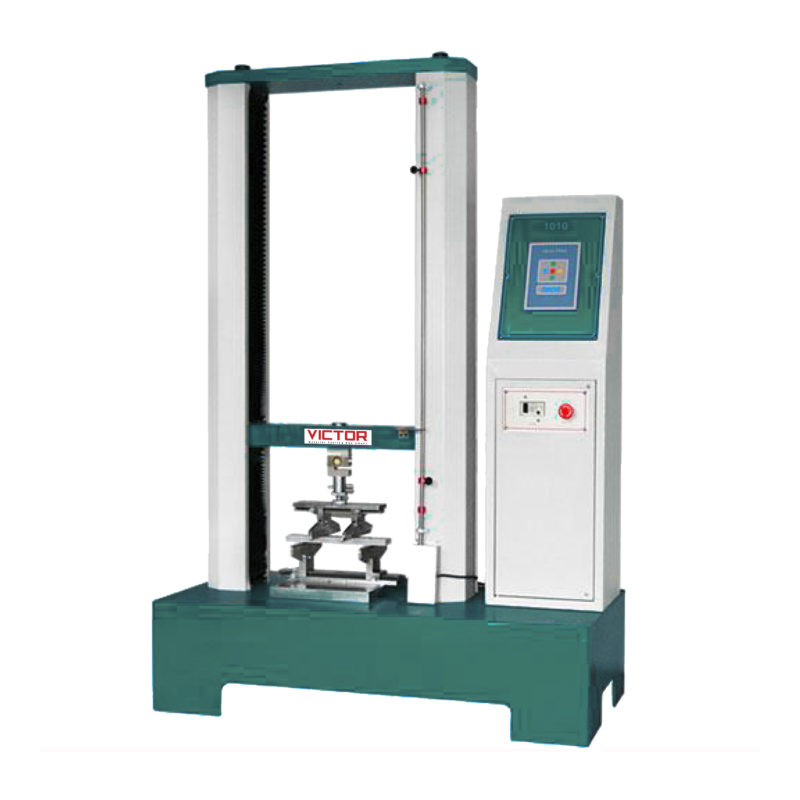

VEW 2308D Microcomputer-type (LCD Display) Universal Testing Machine

Equipment Summary:

VEW 2308D microcomputer-type universal material testing machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2 ton.

Applicable Industries:

It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.

Corresponding Standard:

《GB/T16491-1996  Electronic universal testing machine》

Main Functions:

This machine can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials,

Main Features:

  1. The surface of appearance using electrostatic spray, simple and generous, multi-functions and economy
  2. Digital force displayed by LCD , discernible tension or pressure, LCD display clearly
  3. Three kinds of units: N-Kgf-Lbf option or automatically exchange;
  4. LCD with backlight can be used in low-light environments
  5. Single measurement, it can record the max force of tension and compression in both directions, automatic or manual cleared to zero.
  6. The system would shut down if overload or over-trip
  7. Structure of single-column is beautiful, sophisticated and economy.

Technical Parameters:

Other Parameters:

  1. Machine has function of printing. Can store 10 testing results and auto-calculate its average, auto-grab maximum force and the force at break.
  2. Display: HZ-2000 dark blue LCD display, membrane touch keys, with the following functions.
    • single test, 10-point statistics manually and automatically calculate its average and break values;
    • Multi-unit automatically exchange such as kgf, Lbf, N;
    • function of free to take point;
    • With multi-calibration function;
    • Auto printing function;
    • Using 24-bit AD acquisition, resolution 1 / 200000;
    • Decimal digits 0 to 4 arbitrary choice;
    • Starting up using password protection feature, which can effectively prevent the non-operators to use
    • ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine
    • Overload protection function can be set, effectively preventing machine from overload;
